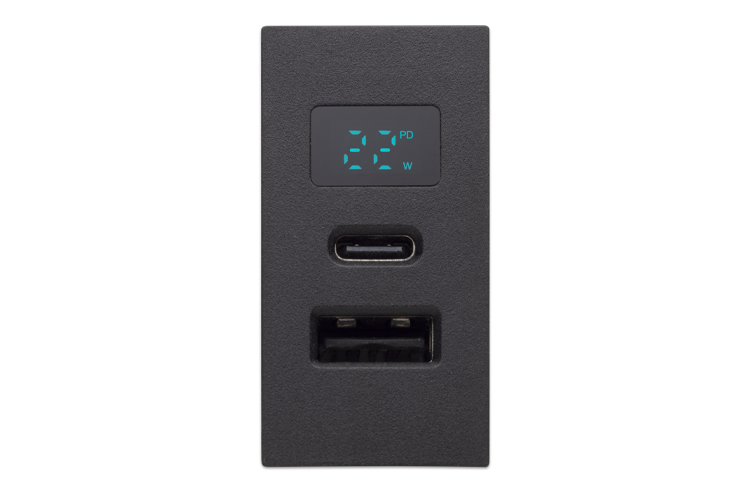

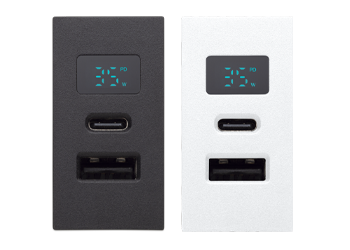

USB Type-C + USB-A 35W PD Charger Modules

Features

• Intelligent digital LED Power Display indicating the Power Delivery (PD) charging in Watts, for the real time monitoring of the power output at a glance.
• Latest Fast Charging Technology USB Type-C, USB-IF Power Delivery (PD) and Qualcomm Quick Charge (QC) with Power Dynamic Allocation Function. This technology ensures that each device connected, has the optimum charging power level needed.
• Intended for charging electronic devices like Smartphones and Tablets, Bluetooth speakers, Powerpacks & gaming accessories quickly and safely.
• The USB-A connector is Bi-directional, a feature unique to D4. This means that you can rotate the plug either way and it will still plug in first time.
• The USB Type-C is now the universal port on most electronic devices and is also Bi-directional.
• USB Type-C connector tested to meet the industry requirement to withstand over 10,000 insertions and withdrawals.
• Peace of mind with Temperature, Over Current, Over Voltage and Short Circuit Protection.
• Can be integrated into any Powerset series from the D4 Range.

Specifications

Power Source (Input) 180-240V / AC
Power Amperage: 0.8A
Power Frequency: 50/60 Hz

Single Output when used independently
USB Type-C 36Watts:

• PD : 5V
  3A 9V
  3A 12V
  2.5A 15V
  2.33A 20V
  1.75A
• QC : 5V
  3A 9V
  2A 12V
  1.5A

USB-A 18Watts:

• QC : 5V
  3A 9V
  2A 12V
  1.5A

Output when used simultaneously in fast charging USB Type-C 20W + USB-A 10Watts = 30W 5V 3A

*the quality of cable is also an important factor to consider

Approvals

• South Africa Letter of Authority LOA certificate number: 203220
• SANS IEC 60950-1
• SANS IEC 62368-1
• IEC 61000-3-2
• IEC 61000-3-3
• CISPIR 32: 2015
• CISPIR 35: 2016
